Petromium design portfolio
Oilfield equipment you can take apart in the browser.
Every design opens as a live 3D model — section it, explode it, move the mechanism through its operating states, and read the bill of material behind it.
15 of 15 designs
- DZC950

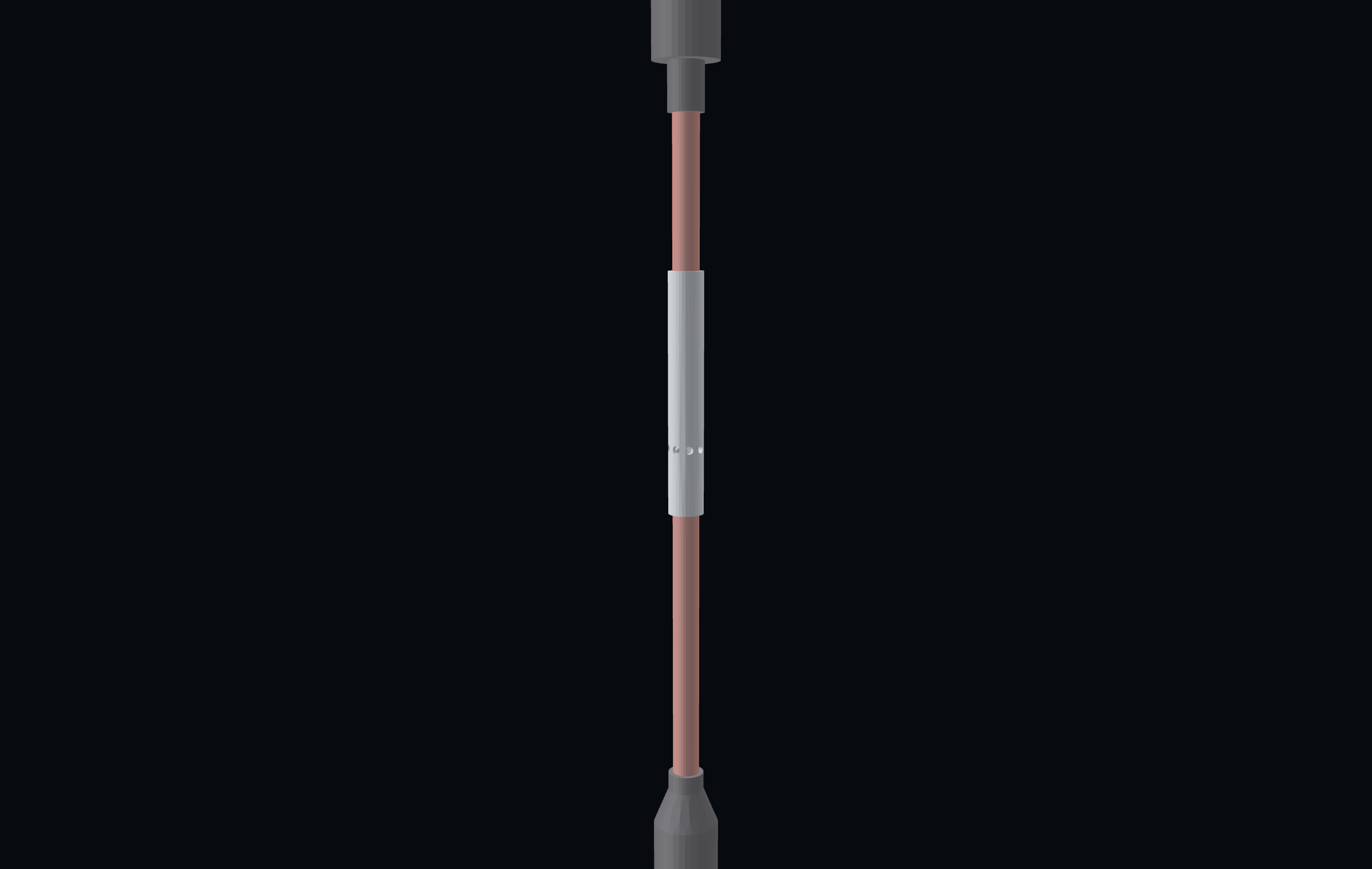

DZC950 Dual-Zone Selective Completion
Two producing intervals on one 3-1/2 in string, each opened or closed by its own wireline-shifted sliding sleeve, with a dual packer, no-go nipple and surface-controlled safety valve.
- Parts
- 12
- Mass
- 1.1 t
- Length
- 12 m
9-5/8 in casingCompletionsRev A - ESP400

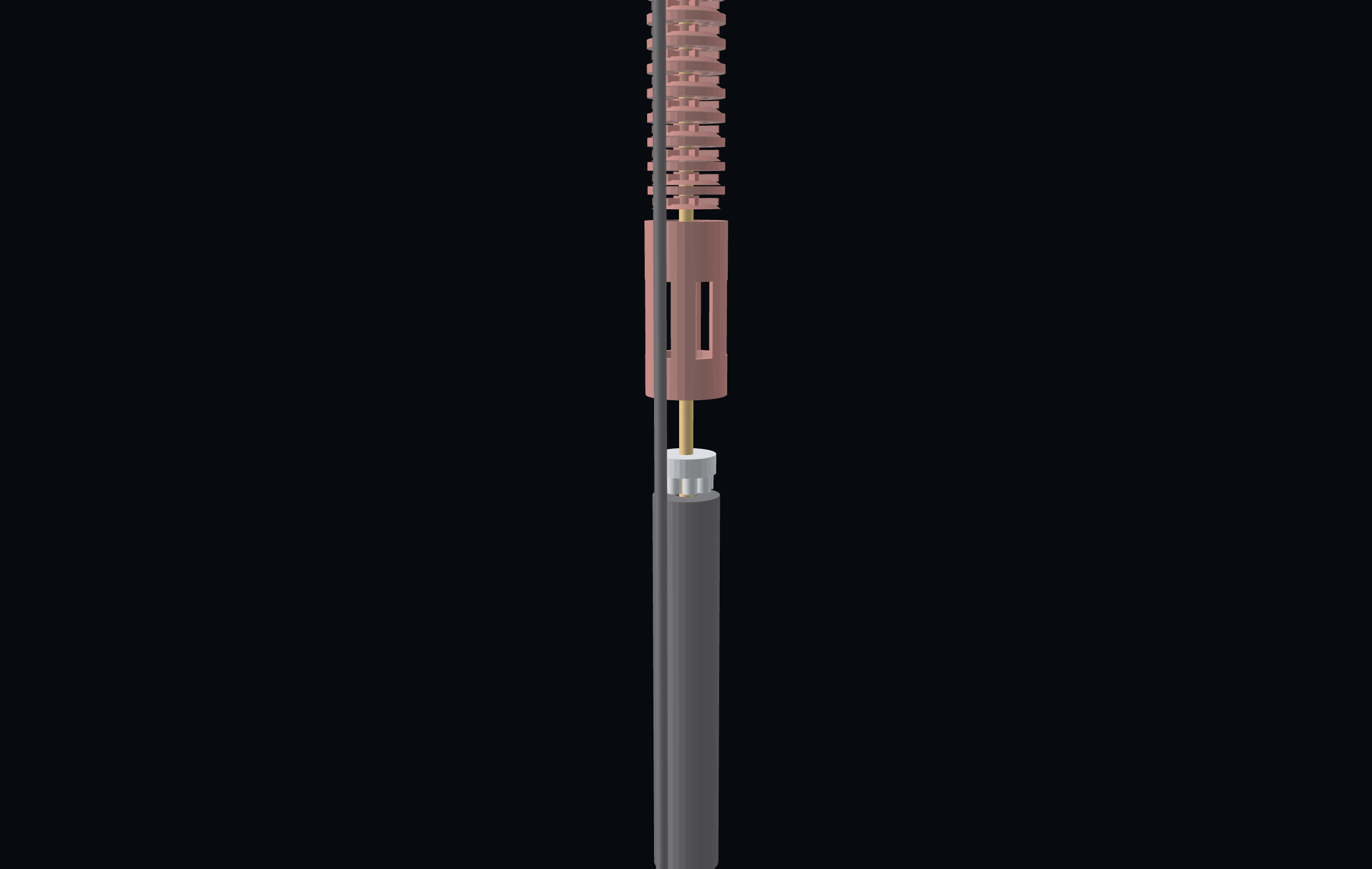

ESP400 Electrical Submersible Pump Assembly
A 5.62 in series electrical submersible pump for artificial lift: two-pole induction motor, seal-section protector with expansion bag, gas-separating intake, eighty-stage centrifugal pump and discharge head, all running on one shaft.
- Parts
- 17
- Mass
- 552 kg
- Length
- 8.19 m
5.62 in seriesCompletionsRev A - HX1640

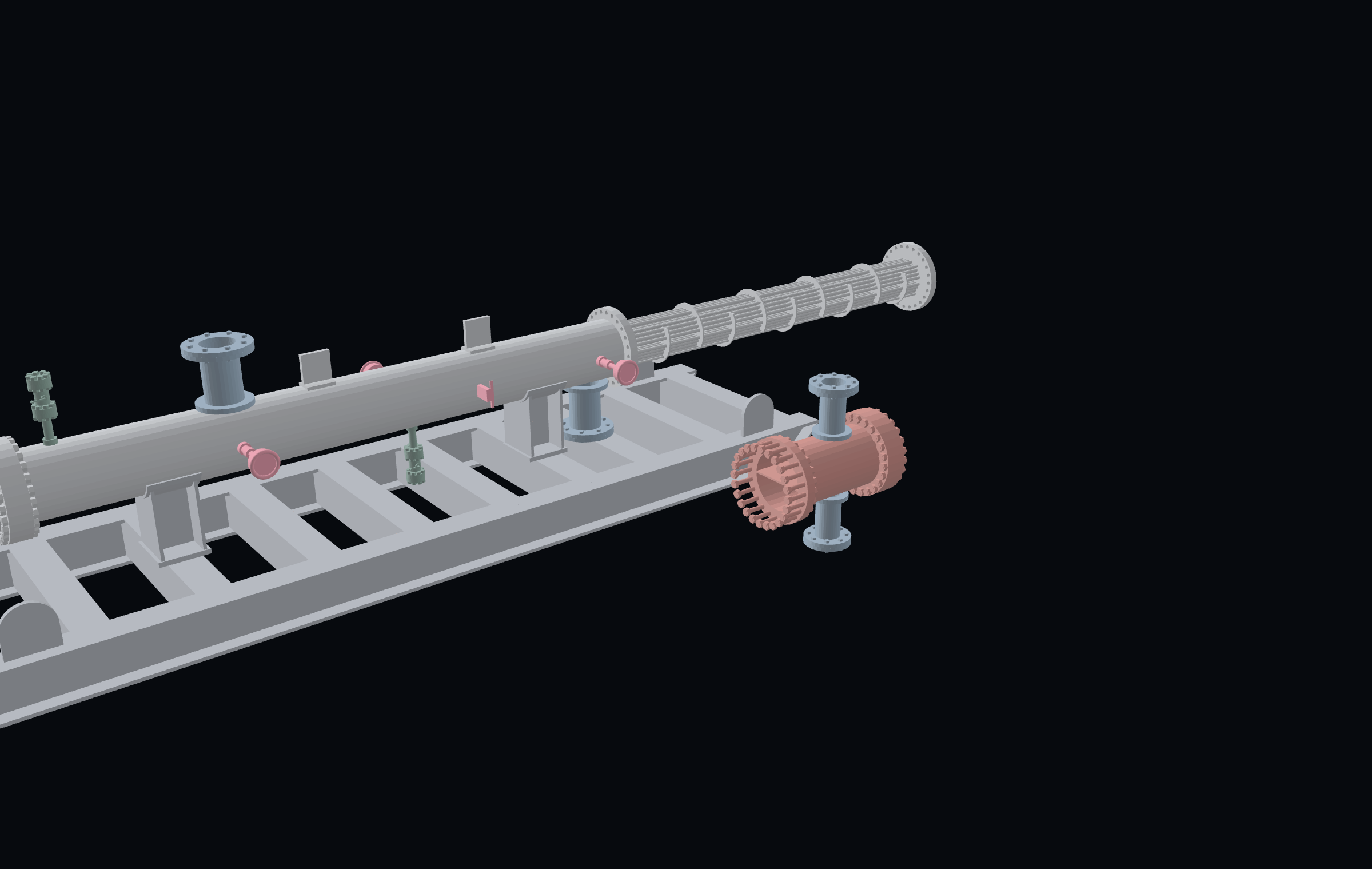

HX1640 Shell-and-Tube Heat Exchanger
A TEMA AES exchanger with a bolted flat channel cover, 76 tubes on triangular pitch, eleven segmental baffles and a floating head, shown assembled and with the bundle withdrawn.
- Parts
- 11
- Mass
- 9.4 t
- Length
- 5.8 m
16 in shellSurface facilitiesRev A - KO1800

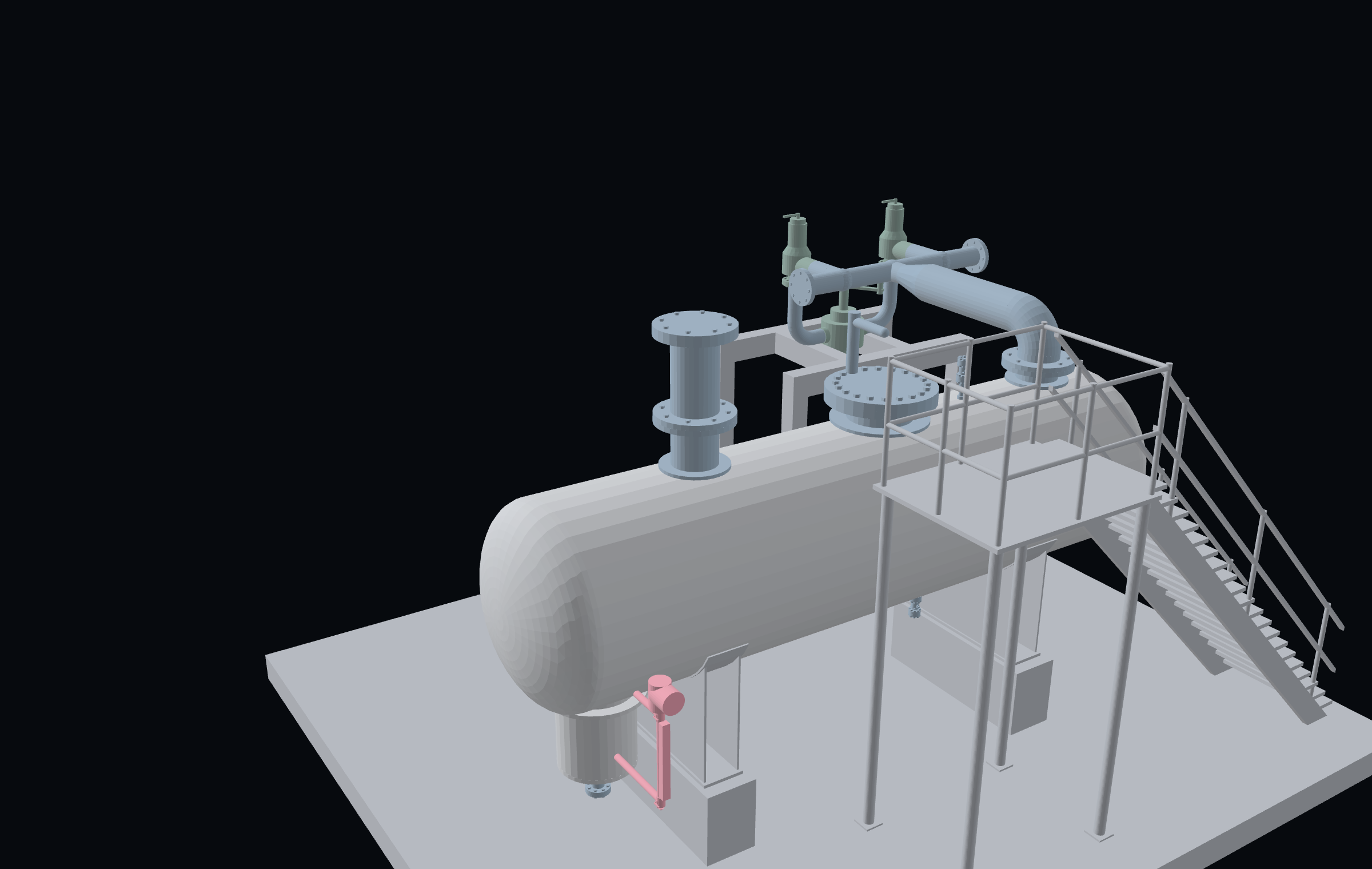

KO1800 Relief Valve and Flare Knockout Drum
Dual relief valves on a three-way transflow changeover discharging through a common tail header into a horizontal flare knockout drum with liquid boot, inlet deflector and vortex breaker.
- Parts
- 12
- Mass
- 14.2 t
- Length
- 9 m
1800 mm drumFlow assuranceRev A - LC0400

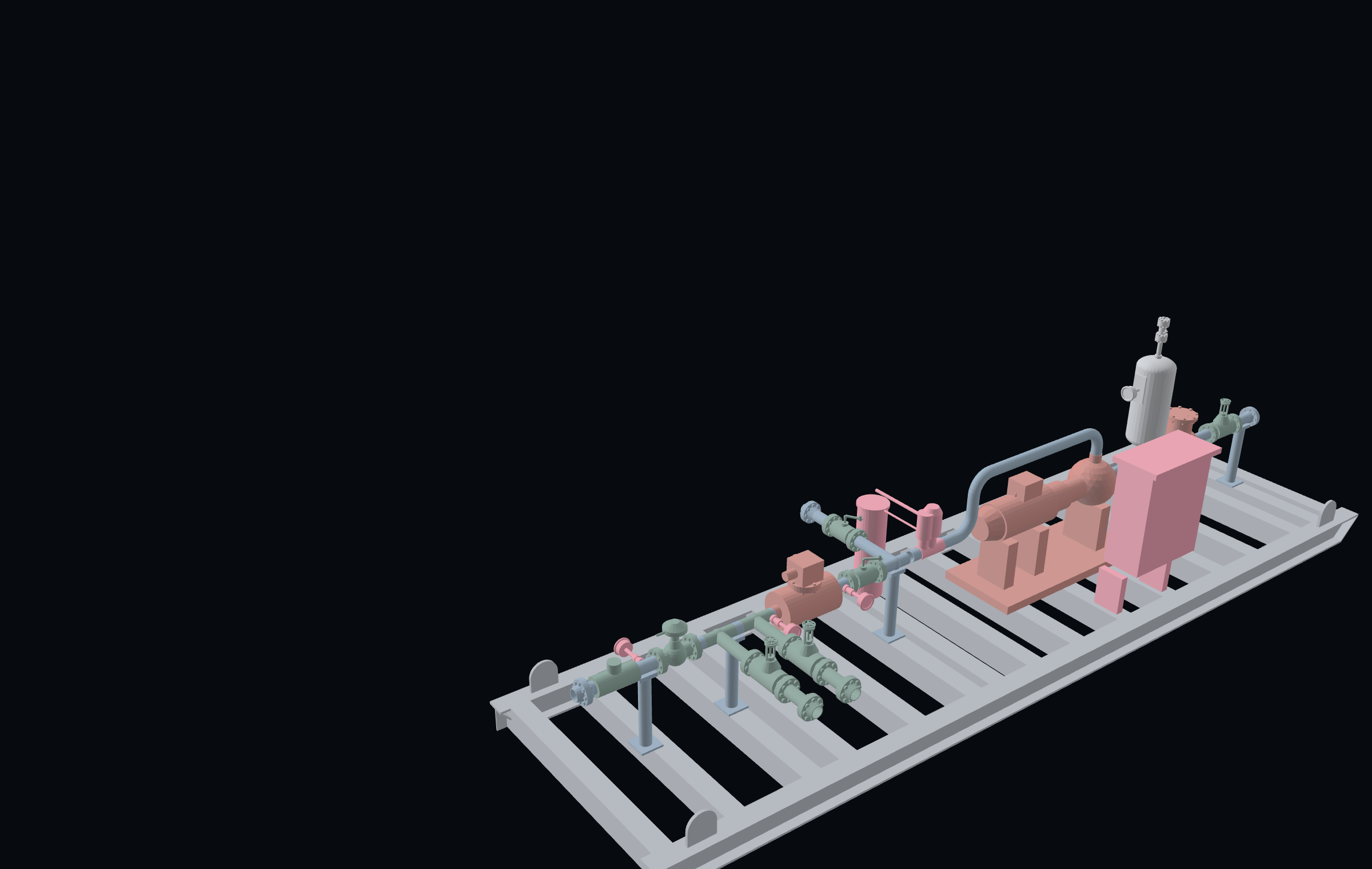

LC0400 LACT Custody Transfer Skid
A 4 in lease automatic custody transfer unit: strainer, float air eliminator, charge pump, BS and W monitor, sampler, positive displacement meter and prover connections, shown on sales and recycling to tank.
- Parts
- 13
- Mass
- 27.3 t
- Length
- 9.5 m
4 in lineSurface facilitiesRev A - MJ850

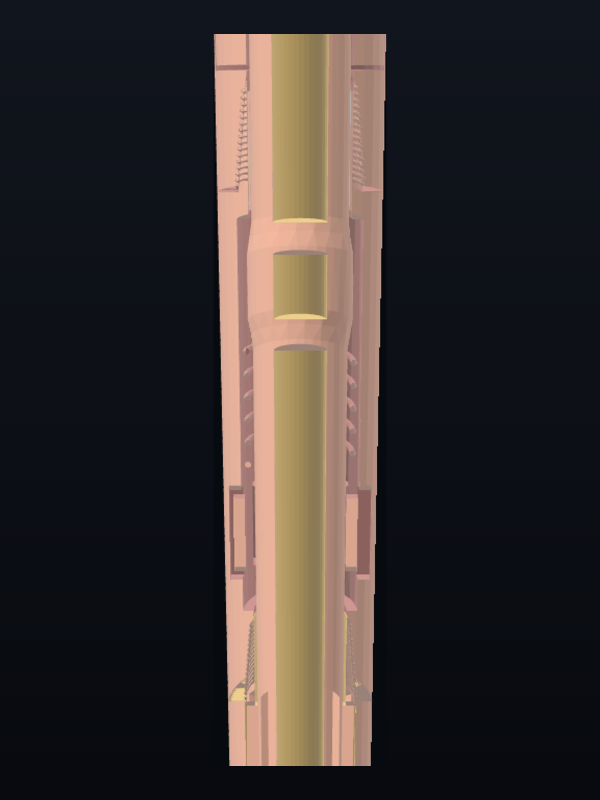

MJ850 Mechanical Drilling Jar
An 8.5 in mechanical drilling jar with a splined torque path, eight-segment detent trip, and a hammer working against hardened up and down anvils.
- Parts
- 20
- Mass
- 415 kg
- Length
- 3.35 m
8.5 in holeDrilling toolsRev B - PBL

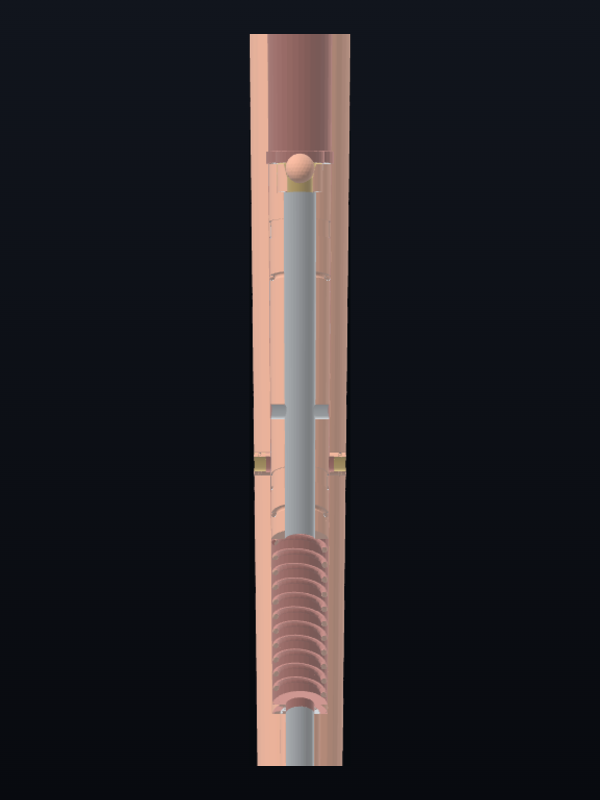

PBL 8.5 in Drill-String Bypass Sub
A ball-activated bypass sub that diverts circulation to the annulus without tripping the string, shown in both closed and bypassing states.
- Parts
- 18
- Mass
- 428 kg
- Length
- 2.1 m
8.5 in holeDrilling toolsRev A - PT1612

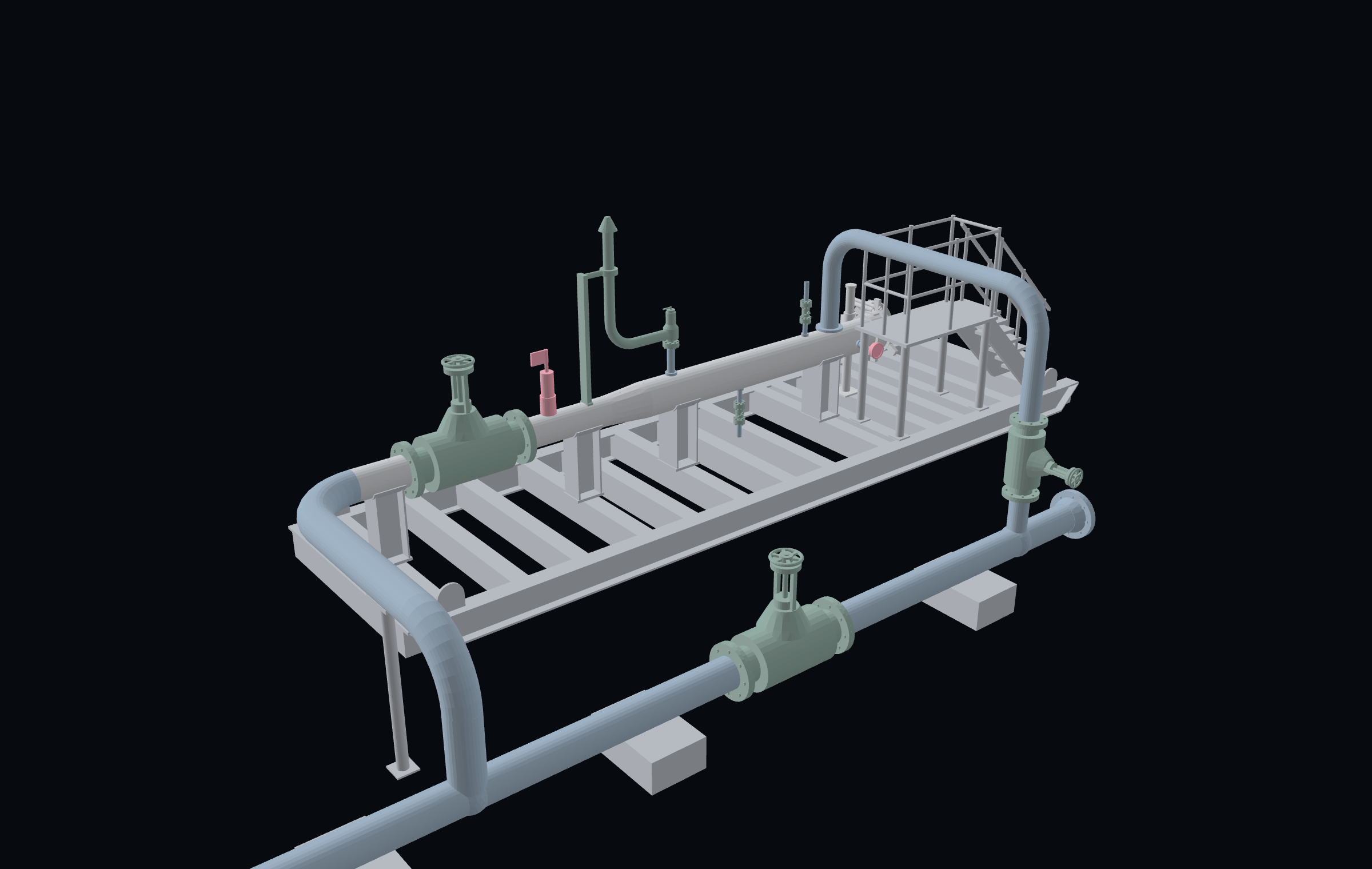

PT1612 Pig Launcher Skid
A 16 by 12 in horizontal pig launcher on a transportable skid, with a quick-opening closure on a davit, kicker line, barred tees and a relief stack, shown closed and open for loading.
- Parts
- 15
- Mass
- 37.6 t
- Length
- 12.87 m
12 in lineFlow assuranceRev A - RC0700

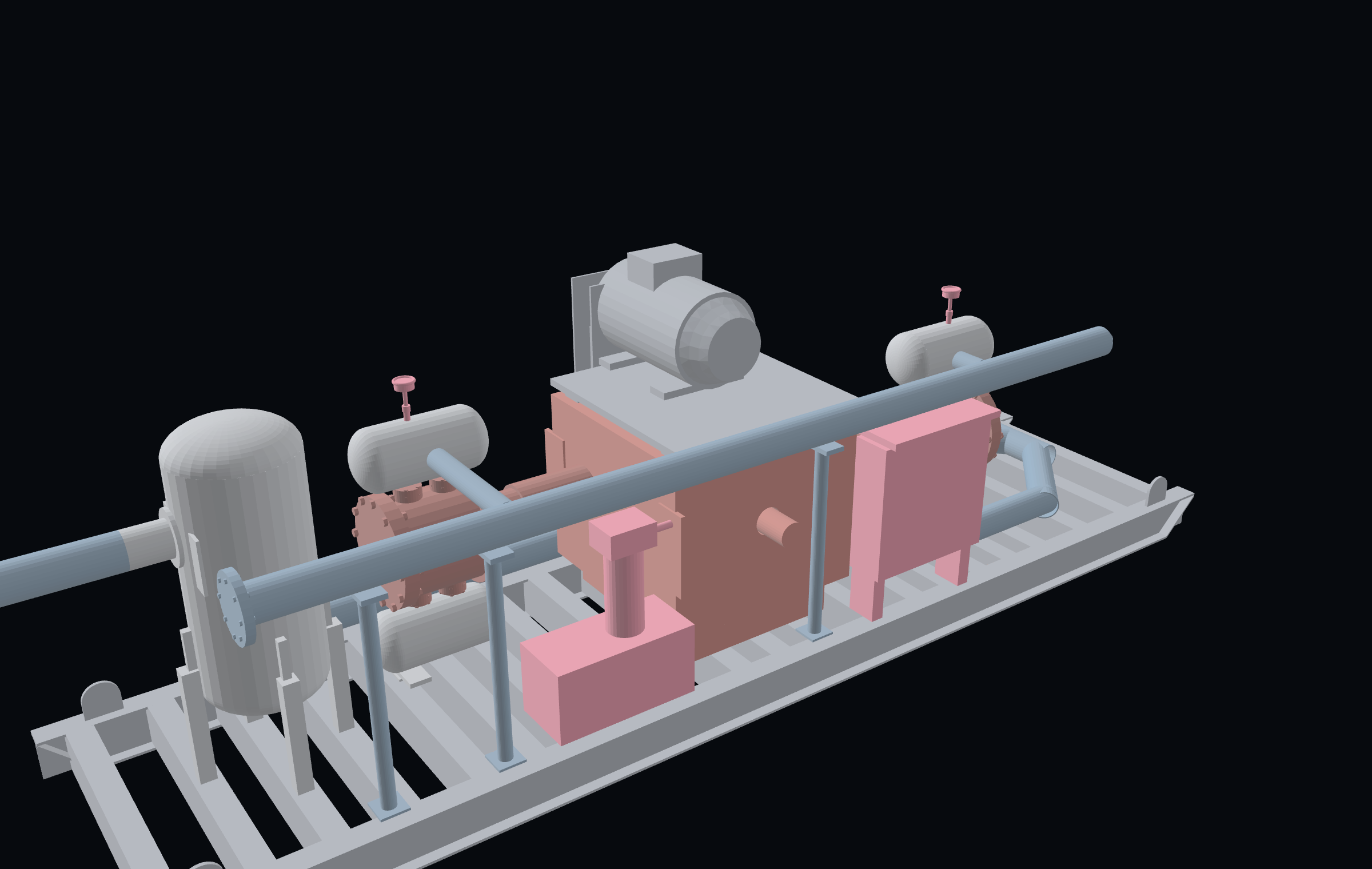

RC0700 Reciprocating Gas Compressor Skid
A two-throw balanced-opposed reciprocating compressor package with a belt drive over the frame, four pulsation bottles and a suction scrubber, shown at both crank dead centres.
- Parts
- 12
- Mass
- 80.2 t
- Length
- 10.72 m
664 mm boreSurface facilitiesRev C - RSS850-M

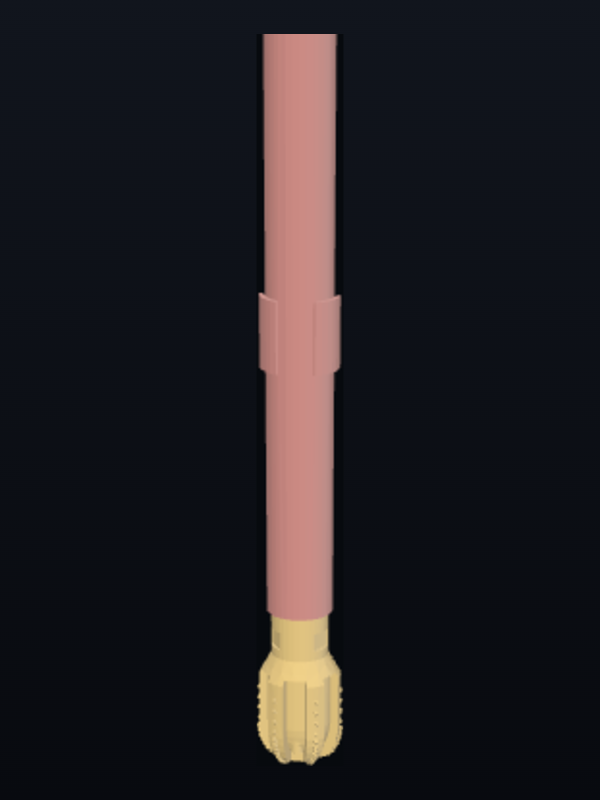

RSS850-M Motorized Rotary Steerable System
An 8.5 in motorized push-the-bit rotary steerable BHA: six-blade PDC bit, three-pad steering unit, 7:8 lobe positive displacement motor, MWD and drill collars.
- Parts
- 51
- Mass
- 3.5 t
- Length
- 23.28 m
8.5 in holeDirectional drillingRev D - P02

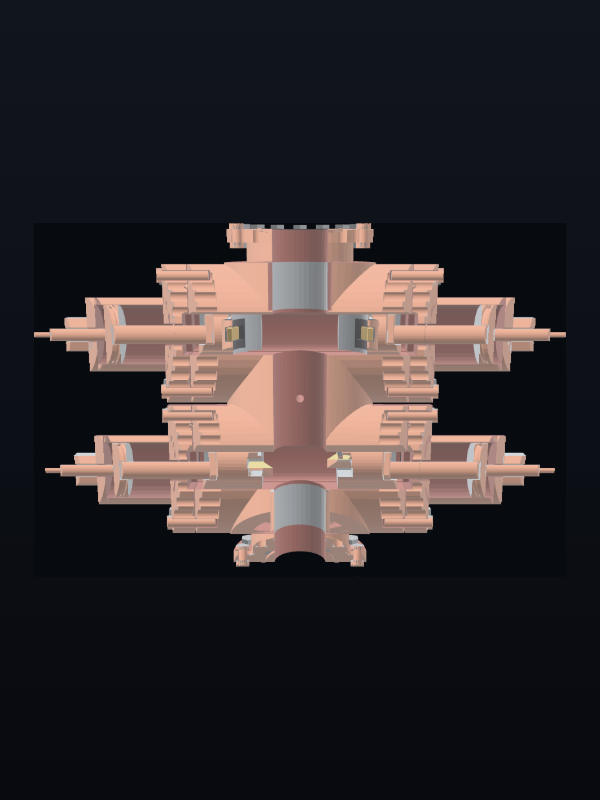

Sentinel 10K Dual-Ram BOP Stack
A 10,000 psi dual-ram blowout preventer with shear and pipe rams, hydraulic operators, studded flanged connections and a full stud-and-nut fastener set.
- Parts
- 61
- Mass
- 18.8 t
- Length
- 3.38 m
13-5/8 in borePressure controlRev B2 - SEP2400

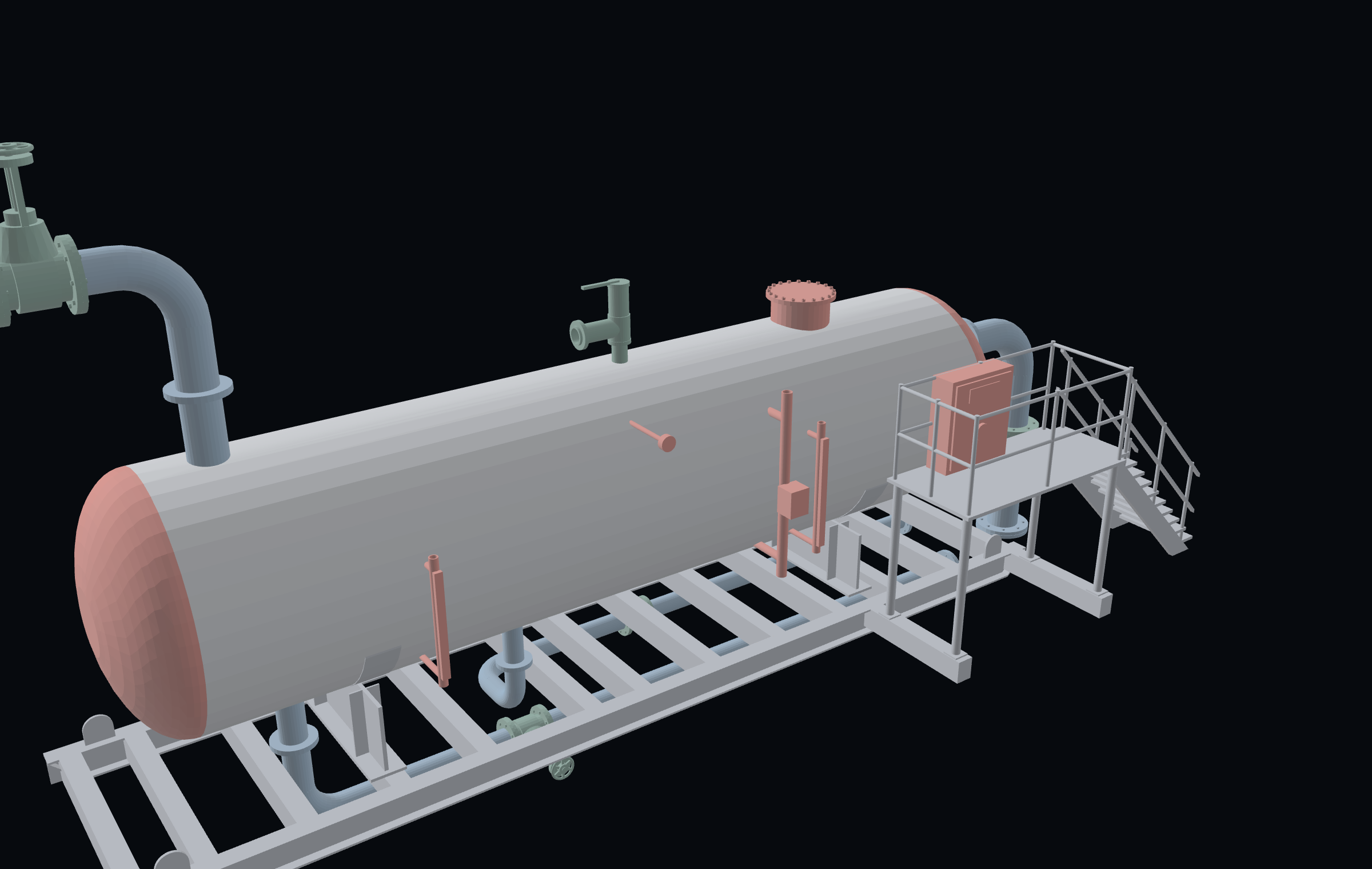

SEP2400 Three-Phase Horizontal Separator
A 2400 mm ID by 9000 mm T/T three-phase production separator: inlet diverter, gas vane pack, oil weir and bucket, vortex breakers, level bridle and relief, with oil and water leaving on separate level-controlled headers.
- Parts
- 17
- Mass
- 4.8 t
- Length
- 12.56 m
2400 mm shellSurface facilitiesRev C - SV550

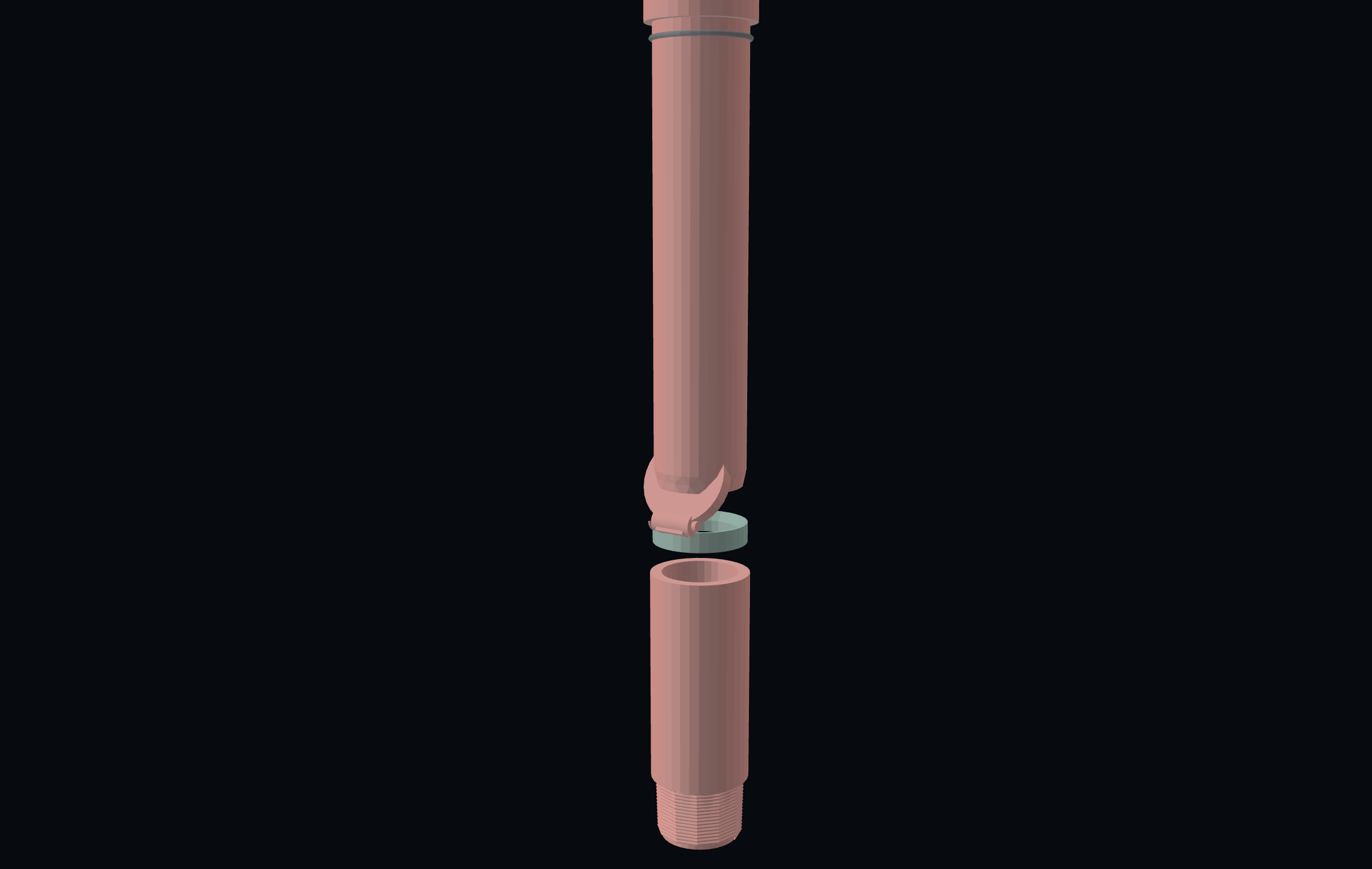

SV550 Tubing-Retrievable Subsurface Safety Valve
A 5-1/2 in fail-safe-closed surface-controlled subsurface safety valve: hydraulic control line, annular piston against a power spring, flow tube and curved flapper, shown both open and closed.
- Parts
- 11
- Mass
- 38 kg
- Length
- 1.95 m
5-1/2 in tubingCompletionsRev A - TZC1075

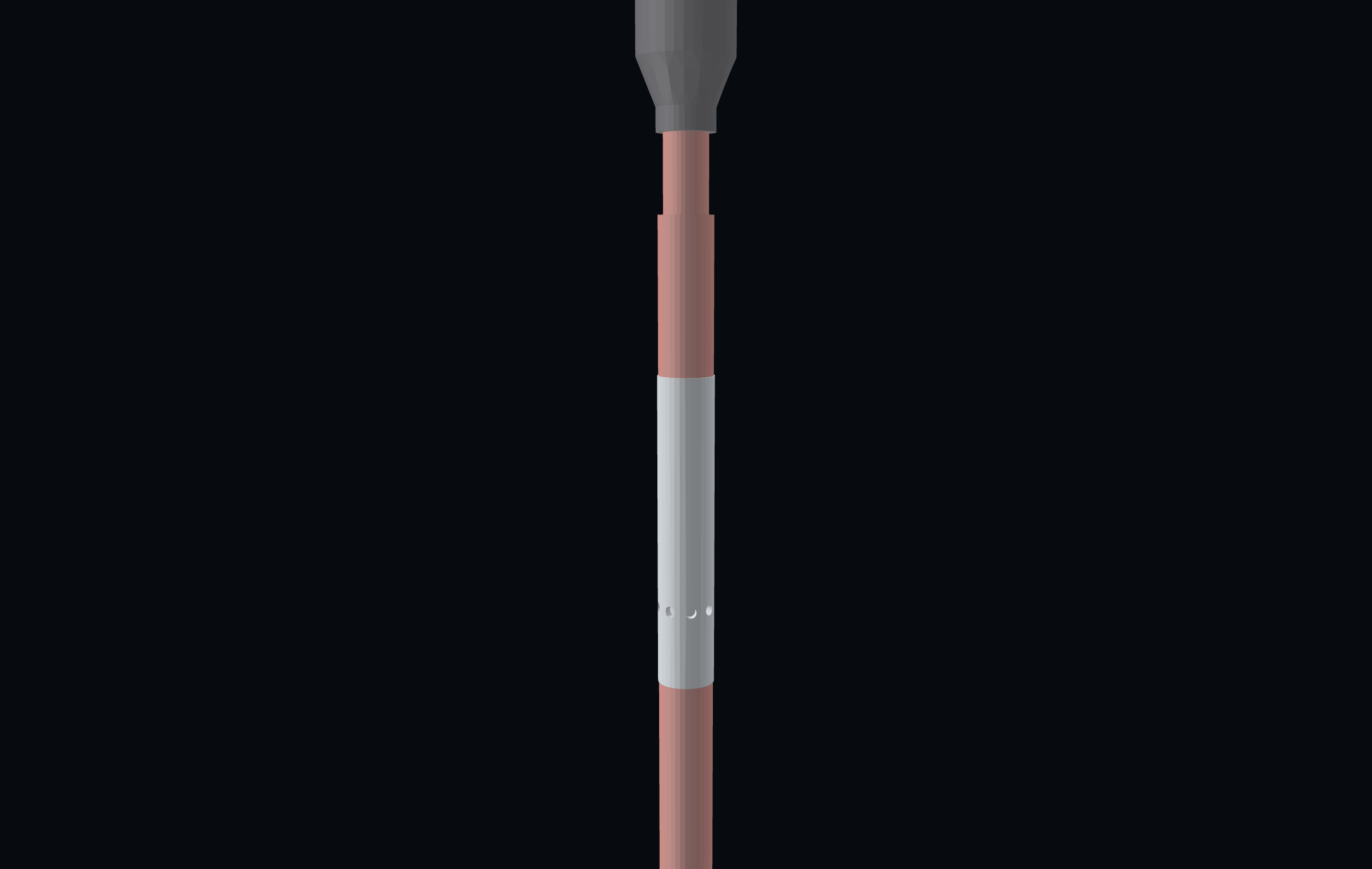

TZC1075 Triple-Zone Stacked Completion
Three stacked reservoir intervals on a single 4-1/2 in string with three packers, three sliding sleeves and sacrificial blast joints across every perforated interval.
- Parts
- 17
- Mass
- 1.8 t
- Length
- 14 m
10-3/4 in casingCompletionsRev A - WH705

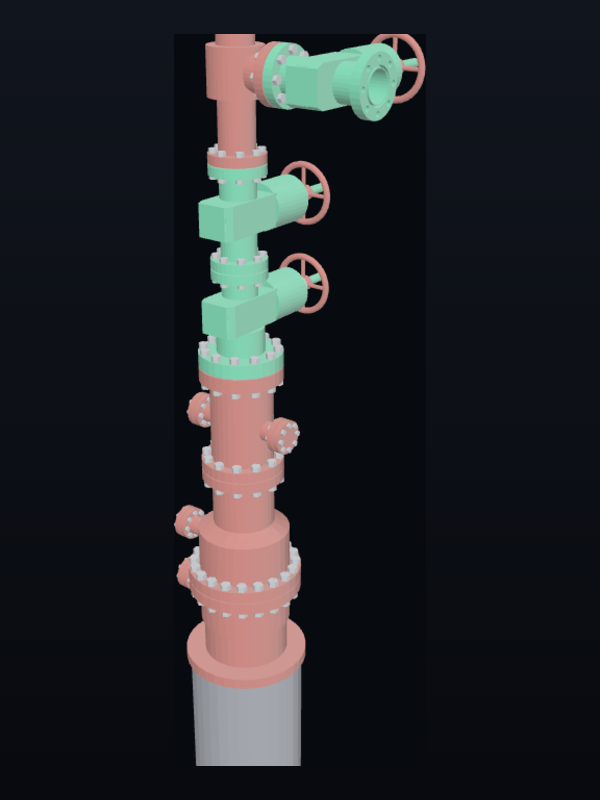

WH705 7 in 5M Wellhead & Christmas Tree
A complete wellhead from the conductor through nested casing spools to the tree, with colour-coded casing strings, gate valves and a slickline entry cap.
- Parts
- 34
- Mass
- 5.2 t
- Length
- 5.24 m
7 in 5MWell constructionRev C
